Swing Check Valve PN 16 -> Swing Check Valve PN 16 -> Cast Iron Non Return Valve
Print this Page
Send Email







PART
MATERIAL

BODY
GREY CAST IRON

BONNET
GREY CAST IRON

WEDGE
GREY CAST IRON

SEAL RING
CAST BRASS

HANGER
DUCTILE IRON

HANGER PIN

FINE CARBON STEEL

GASKET
RUBBERIZED ASBESTOS PLATE

NOMINAL PRESSURE

1.0MPa

SHELL TEST PRESSURE

1.5MPa

SEAL TEST PRESSURE

1.1MPa

SUITABLE MEDIA

STEAM, WATER

SUITABLE TEMPERATURE

<=200 •C

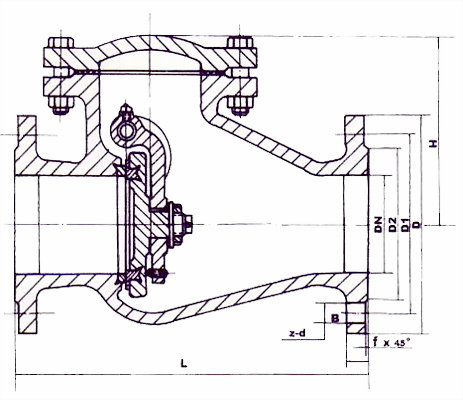

DN

L

D

D1

D2

f

B

Z-d

H
40
200
145
110
85
3
20
4-18
130
50
230
160
125
100
3
20
4-18
137
65
290
180
145
120
3
20
4-18
142
80
310
195
160
135
3
22
4-18
191
100
350
215
180
155
3
22
8-18
178
125
400
245
210
185
3
24
8-18
203
150
480
280
240
210
3
24
8-23
233
200
500
335
295
265
3
26
8-23
262
250
550
390
350
320
3
28
12-23
299
300
620
440
400
368
4
28
12-23
350
350
720
500
460
428
4
30
16-23
392
400
820
670
620
585
4
32
20-25
525
