| محابس فراشات بولندية |
. هذا المنتج مكتوب عليه على أنه حديد ظهر (صنع في بولندا) ونحن الموزع الوحيد في جمهورية مصر العربية* |
| |
|
|
 |

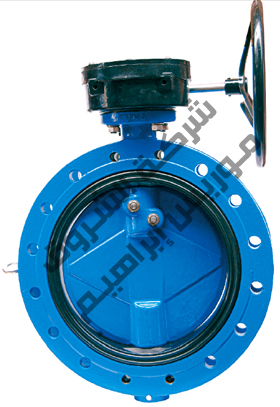

| Butterfly Valve Flanged 4496 |
|
|
|
|
| |
Technical Data: |
face to face lenght acc. EN 558-1
version acc. EN 593 : 2004
terms of acceptance acc. EN 12266-1
flanges acc. EN 1092-2
leakproofness class - A
working pressure max. PN16
medium temperature - up to: NBR + 70°C; EPDM + 120°C; KFM + 150°C |
Design Features: |
The version of execute should be always agreed
Max flow rate : - Liquids (water) 4 m/s, - gases (air) 30 m/s.
Executions with : mechanical, electric, pneumatic drive possibility
All parts are protected against corrosion.
Standard execution : PN10, 70°C, NBR, without drive, epoxide paint RAL5005 250µm
Certyficat CE : Hygienic attest by PZH
|
Application: |
Sea water, industrial water, potable water, waste water, fuel oil, air, and other neutral media depending on kind of elastomer. |
Assembly: |
Baterfly valves are both side action.
Assembly for : DN 80-250 any
DN 300 - 700 drive from the side - shaft horizontaly
Other executions on request
|
|
| |
|
|
| |
|
| |
| |
|
|
|
|
2. wykonanie morskie |
|
|
EN-GJL-250 (GG25), EN-GJS-400-15 (GGG40)(2
|
EN-GJL-250 (GG25) |
|
Klapa |
EN-GJL-250 (GG25)(1, EN-GJS-400-15 (GGG40)(2,
X5CrNiMo17-12(AISI316)
|
CuSn5Zn5Pb5-C (B555) |
3 |
Wkładka |
NBR
FKM (DN80-250)(2, EPDM(2 |
NBR |
|
|
|
CuAl10Fe3Mn2 (BA1032) |
|
|
CuAl10Fe3Mn2 (BA1032) |
|
|
|
CuAl10Fe3Mn2 (BA1032) |
|
|
|
|
|
|
NBR |
|
| |
|
|
| |

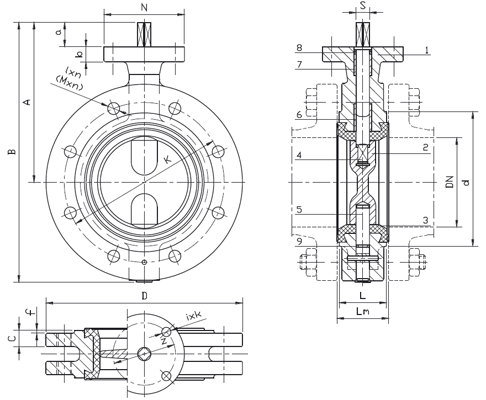

DN |
PN |
L |
Lm |
c |
f |
A |
B |
N |
D |
K |
l (M) |
n |
i |
k |
z |
S |
a |
Masa |
PN10 |
PN16 |
PN10 |
PN16 |
PN10 |
PN16 |
PN10 |
PN16 |
1 |
2 |
mm |
bar |
mm |
szt |
mm |
kg |
80 |
10
(16*)
|
46 |
48 |
17 |
2 |
160 |
234 |
90 |
200 |
160 |
19 (M16) |
8 |
4 |
9 |
70 |
11 |
30 |
8.3 |
9.8 |
100 |
53 |
55 |
17 |
2 |
182 |
294 |
90 |
220 |
180 |
19 (M16) |
8 |
4 |
9 |
70 |
14 |
30 |
9.3 |
11 |
125 |
57 |
59 |
18 |
2 |
207 |
354 |
90 |
250 |
210 |
19 (M16) |
8 |
4 |
9 |
70 |
14 |
30 |
14 |
16 |
150 |
57 |
59 |
18 |
2 |
223 |
368 |
90 |
285 |
240 |
23 (M20) |
8 |
4 |
9 |
70 |
17 |
30 |
17 |
19.5 |
200 |
60 |
63 |
19 |
2 |
255 |
430 |
90 |
340 |
295 |
23 (M20) |
8 |
4 |
9 |
70 |
17 |
30 |
25 |
29.5 |
250 |
69 |
72 |
20 |
2 |
314 |
521 |
125 |
395 |
350 |
23 (M20) |
12 |
4 |
12 |
102 |
22 |
40 |
40 |
47 |
300 |
79 |
82 |
22 |
3 |
342 |
577 |
125 |
445 |
400 |
23 (M20) |
12 |
4 |
12 |
102 |
22 |
45 |
57 |
67 |
350 |
78 |
81 |
24 |
3 |
365 |
635 |
175 |
505 |
460 |
23 (M20) |
16 |
16 |
4 |
14 |
125 |
27 |
45 |
73 |
86 |
400 |
102 |
106 |
26 |
4 |
410 |
720 |
175 |
565 |
580 |
515 |
525 |
28 (M24) |
31 (M27) |
16 |
16 |
4 |
14 |
125 |
27 |
60 |
110 |
130 |
500 |
127 |
131 |
30 |
4 |
490 |
860 |
590 |
670 |
715 |
620 |
650 |
28 (M24) |
34 (M30) |
20 |
20 |
4 |
22 |
165 |
36 |
65 |
199 |
235 |
600 |
154 |
158 |
34 |
5 |
565 |
1015 |
210 |
780 |
840 |
725 |
770 |
31 (M27) |
37 (M33 |
20 |
20 |
4 |
22 |
165 |
46 |
65 |
295 |
348 |
700 |
165 |
169 |
34 |
5 |
610 |
1110 |
300 |
910 |
910 |
840 |
840 |
31 (M27) |
37 (M33 |
20 |
20 |
8 |
18 |
254 |
46 |
70 |
341 |
377 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
